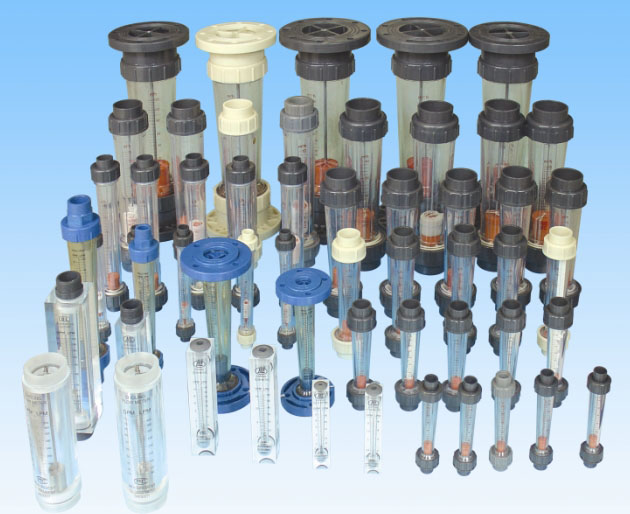

Plastic Rotameter (Long and Short Tube)

The short of rube model

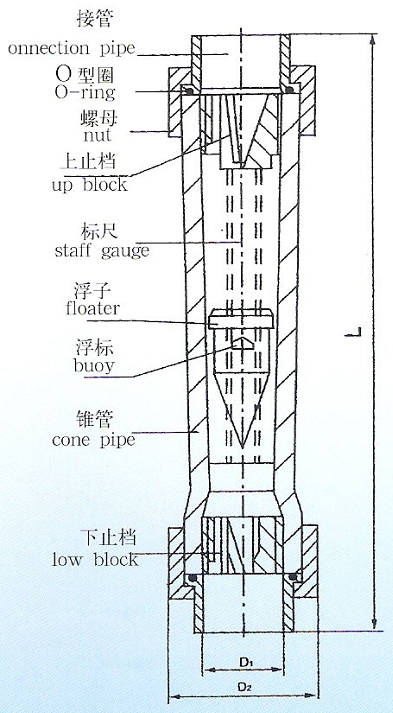

Size of Connection
Normal Diameter	Type	Scope of Measure	Size (mm)			Peg Grafting Tube Specifi-cation	Welded Pipe Specif-ication	Grade of Accuracy	Withst-anding Pressure	Tempe-rature of Medium(℃)
			L	D1	D2
15	LZB-15S	10-100L/h	200	20	45	15	20	4	<=1 MPa	0-60 (Water)
		16-160L/h
		25-250L/h
		40-400L/h
		60-600L/h
25	LZB-25S	100-1000L/h	226	32	60	25	32
		160-1600L/h
		250-2500L/h
		300-3000L/h
32	LZB-32S	400-4000L/h	288	40	74	32	40
		600-6000L/h
50	LZB-50S	0.6-6m³/h	341	63	98	50	63
		1-10m³/h
		1.6-16m³/h
65	LZB-65S	5-25m³/h	430	75	65	65	75
		8-40m³/h
		12-60m³/h

The long of rube model

Size of Connection
Normal Diameter	Type	Scope of Measure	Size (mm)			Peg Grafting Tube Specifi-cation	Welded Pipe Specif-ication	Grade of Accuracy	Withst-anding Pressure	Tempe-rature of Medium(℃)
			L	D1	D2
15	LZB-15S	10-100L/h	280	20	45	15	20	4	<=1 MPa	0-60 (Water)
		16-160L/h
		25-250L/h
		40-400L/h
		60-600L/h
25	LZB-25S	100-1000L/h	380	32	60	25	32
		160-1600L/h
		250-2500L/h
		300-3000L/h
50	LZB-50S	0.4-4m³/h	435	63	98	50	63
		0.6-6m³/h
		1-10m³/h
		1.6-16m³/h

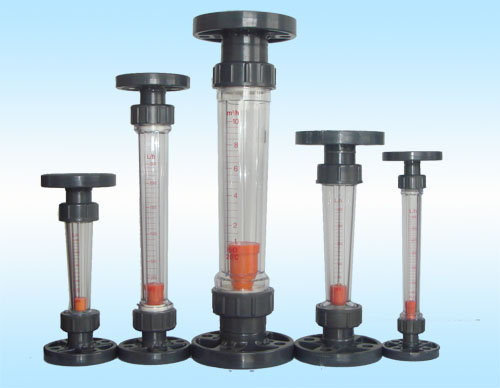

Flange Type
